OEM/ODM Custom Titanium Etching Flow Plate for Energy Industry
Flow Plates Overview
Xinhaisen Technology is a leading manufacturer of high-precision etched flow plates used in injection molding, die casting, and industrial fluid distribution systems. Our chemically etched flow plates ensure ultra-smooth material flow, minimal pressure loss, and extended tooling life compared to conventional machined alternatives.
Flow Plates Features
·Ultra-Precise Flow Channels
·Optimized Material Flow
·Superior Material Selection
·Enhanced Durability & Performance
·Cost-Effective Manufacturing
Flow Plates Specification
| Parameter | Specification |
| Material Options | Titanium, Alloys |
| Thickness | 0.5mm – 3.0mm |
| Tolerance | ±0.01mm (High-Precision) |
| Surface Finish | Electropolished (Ra<0.2μm), PTFE Coated, Nitrided |
Flow Plates Application
·Plastic injection molding (hot flow & cold flow systems)
·Die casting (aluminum, zinc, magnesium alloys)
·Industrial fluid control (coolant distribution, lubrication systems)
·Semiconductor & PCB manufacturing (chemical etching process plates)
FAQ
Q1: What's the advantage of etched flow plates over machined ones?
Etched plates provide smoother channels, no burrs, and better wear resistance at lower cost for complex designs.
Q2: Can you produce conformal cooling channels?
Yes! We specialize in 3D cooling channels that follow mold contours for optimal thermal management.
Q3: What's your lead time for prototype runner plates?
5-7 working days after design approval (faster than CNC machining).
Q4:Why Choose Xinhaisen Technology?
·13+ years specializing in precision etched components
·One-stop solution from design to coating/heat treatment
·Competitive pricing with no minimum order quantity
·Global logistics support with on-time delivery guarantee
Contact us today for a free analysis and quote!
Product Tags:
|
|

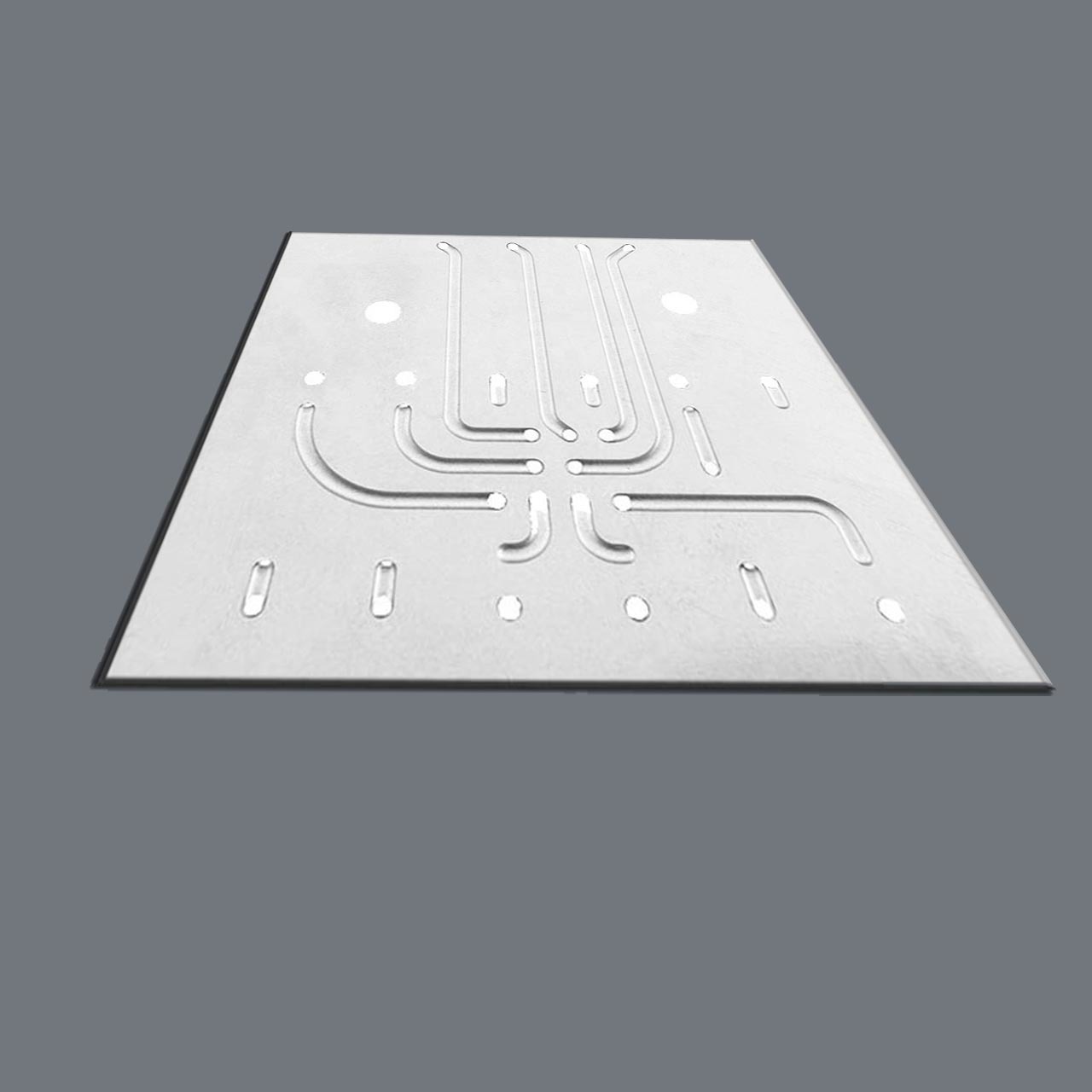

OEM/ODM Custom Titanium Etching Flow Plate for Energy Industry Images
|
